- Raptor 90w LED 20.5" Light Bar
- Made in Australia – Designed and built for some of the toughest environments on earth.
- Available with either 4000k or 5700k Colour Temperature
- 3 Year Warranty
- Suits DV12H Harness – Sold Separately
If you are unsure if the part suits your vehicle, please contact us with your VIN number before purchase to avoid ordering the wrong part. Blue "Notify Me" button means item is out of stock.

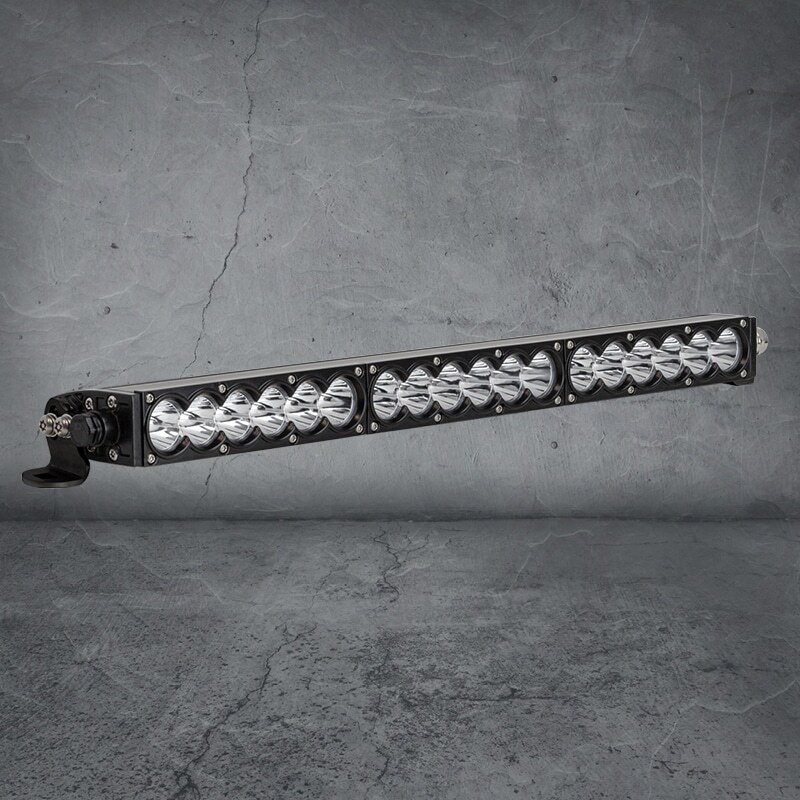

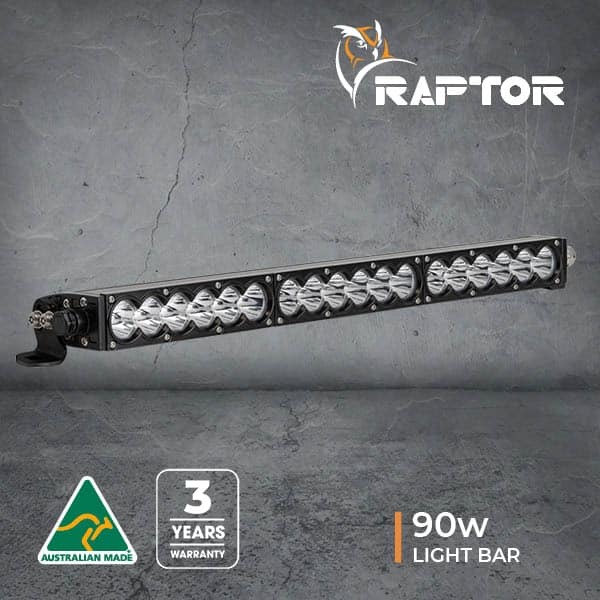

RAPTOR 90 LED 20.5" LIGHT BAR - COMBO - 5700K - BLACK RIM
More infoMake 4 interest-free payments of $102.25 fortnightly and receive your order now.
More info »Calculate Shipping
Australia Post eParcel - $30.00
eParcel Post & Handling Fee
20.5 Inch LED Light Bar
The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.
To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.
All RAPTOR lamps come with complete stainless steel pivot mounting brackets and stainless steel fixings. As with all Raptor products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.

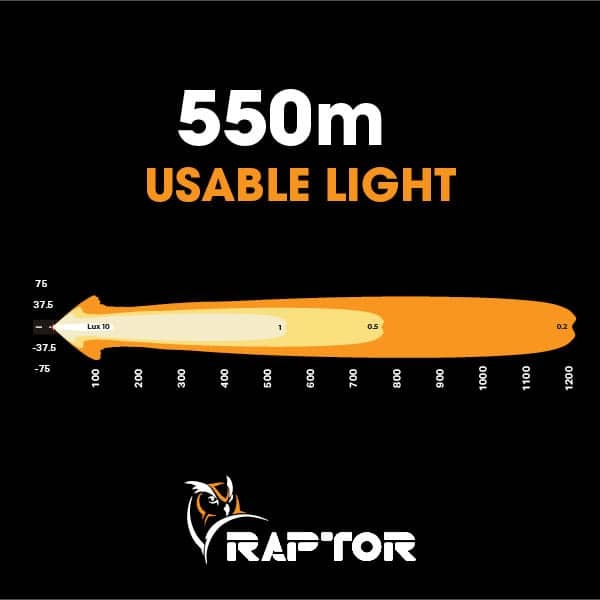

Light Bar Beam Pattern
(RAP090LB)
| 90W RAPTOR LIGHT BAR SPECIFICATIONS | |
|---|---|
| Wattage | 90 Watts |
| Light Source | 18 x 5w LED's |
| Light Output – Raw | 10,800 Lumens |
| Light Output – Effective | 8,650 Lumens |
| Voltage | 9-36V |
| Current Draw | 6.7A @ 13.5V |
| Operating Temp. | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plugs | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |

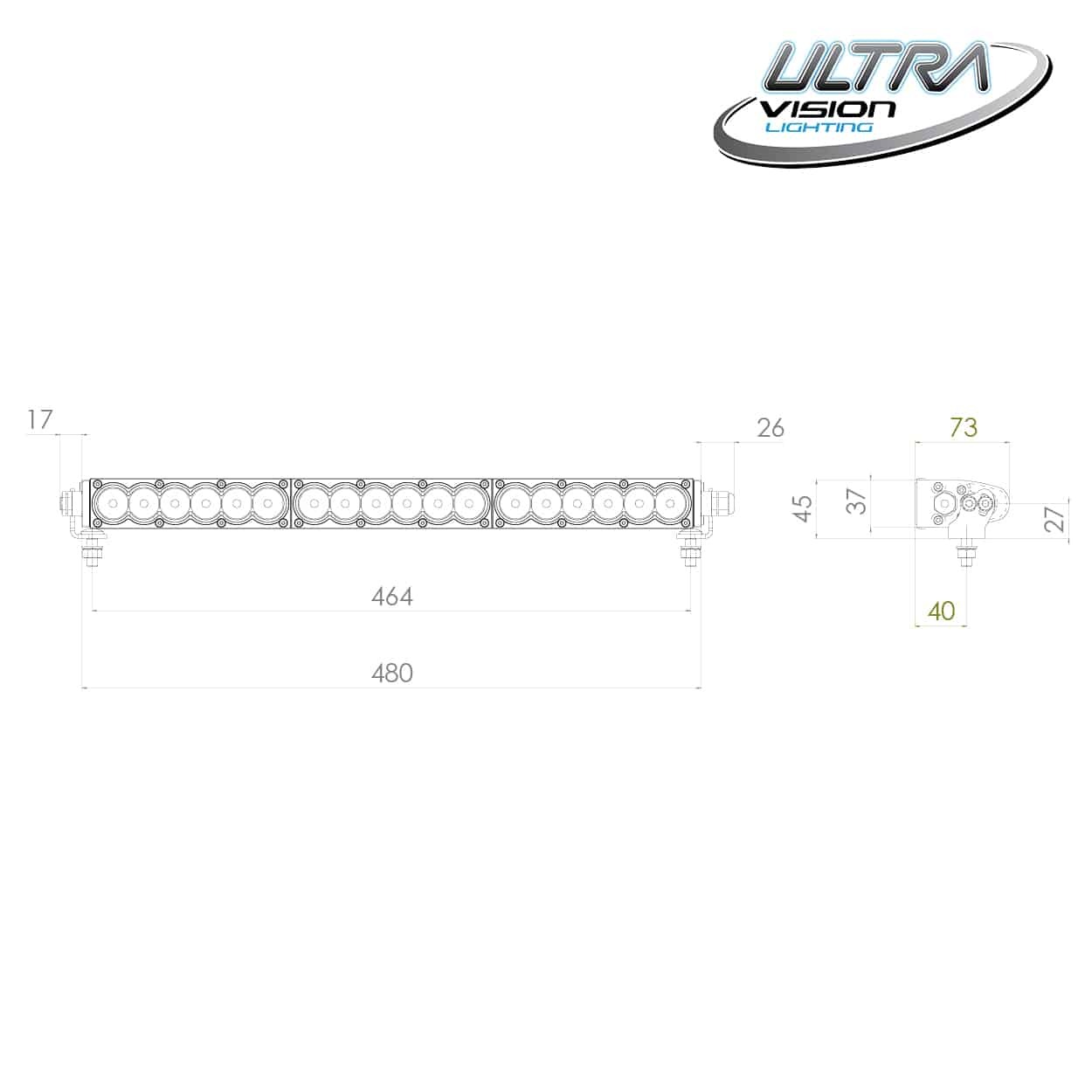

| Dimensions | 523 x 45 x 73mm |
| Net Weight | 1.7kg |
| Mounting Suitable | Side Mounts |
| Beams Type | Combo or Spread |
| Warranty | 3 Years |

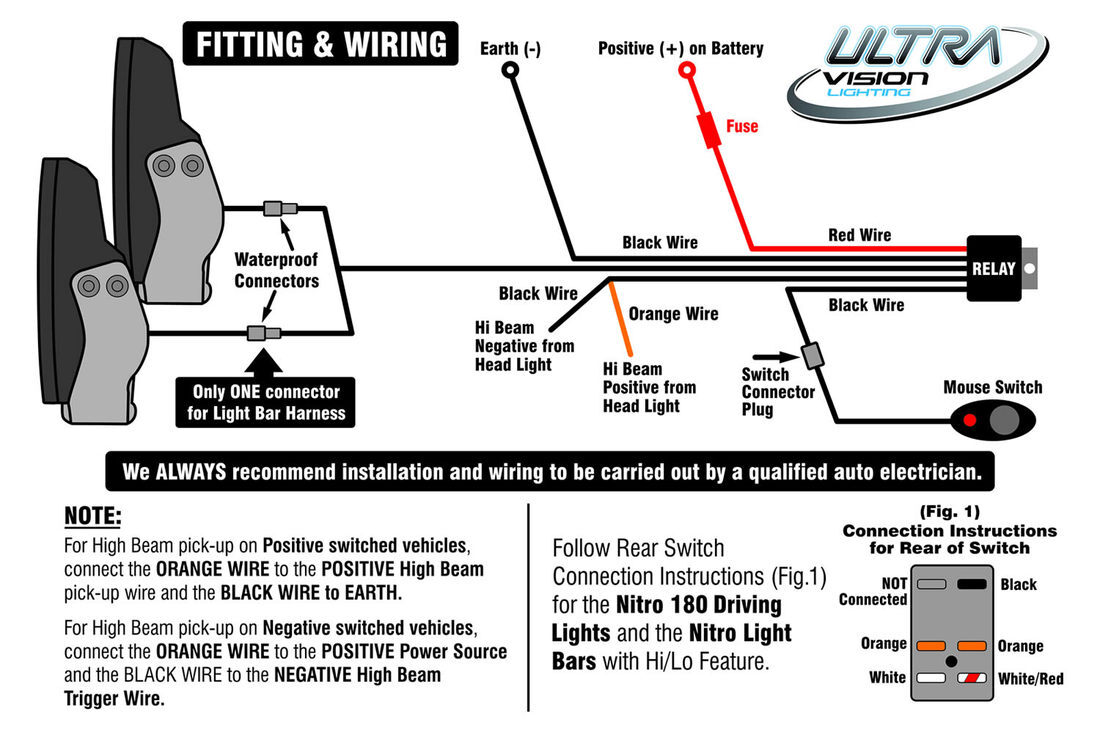

| Harness | Harness not included, purchased separately. Harness to suit: DV12H |
| Part Number | |
| Combo, 5700K | RAP090LBv2 |
| Spread, 5700K | RAP090LBSv2 |
| Combo, 4000K | RAP090LB4v2 |
| Spread, 4000K | RAP090LB4Sv2 |
| SKU | RAP090LB |
| Brand | Ultra Vision Lighting |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
