- Raptor 90 LED 20.5" Light Bar Number Plate Kit
- Designed & made in Australia
- 3-year warranty
- Tough powder coated stainless steel mounting bracket
- Simple Installation
- Universal fitment, no modifications required
If you are unsure if the part suits your vehicle, please contact us with your VIN number before purchase to avoid ordering the wrong part. Blue "Notify Me" button means item is out of stock.
Make 4 interest-free payments of $134.75 fortnightly and receive your order now.
Calculate Shipping
Australia Post eParcel - $30.00
eParcel Post & Handling Fee
Notify me when back in stock
20.5 Inch LED Light Bar Kit

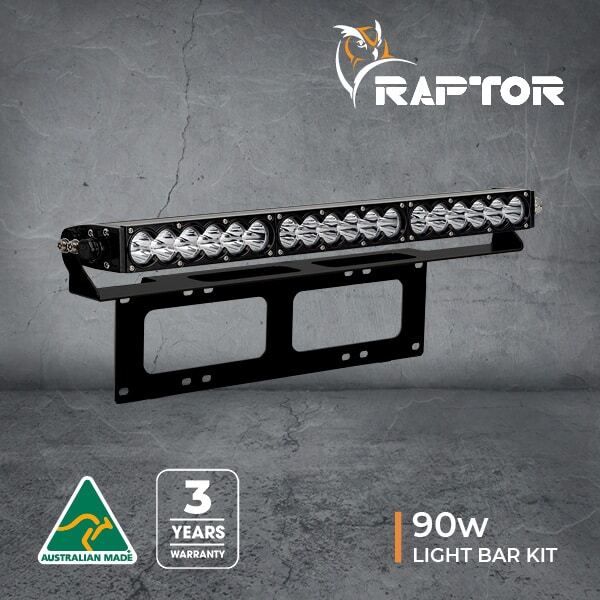

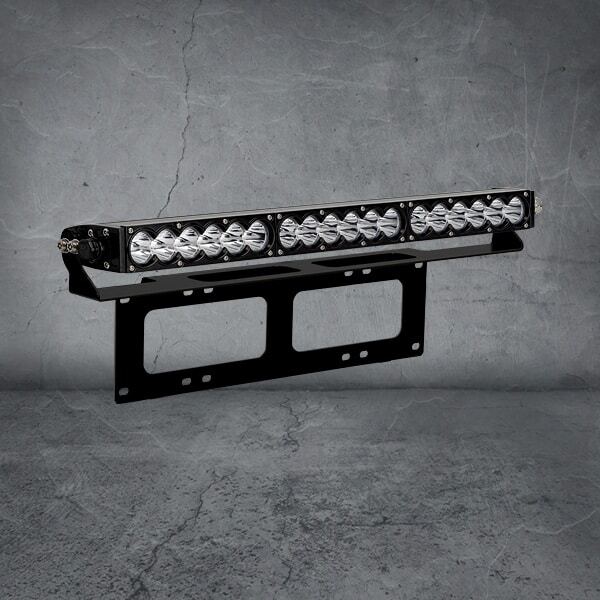

The Raptor 90 LED 20.5″ Light Bar number plate kit comes complete with a Raptor Light Bar, wiring harness and a number plate mount.
The RAPTOR LED Light Bar is manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bar exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.
To ensure maximum driver comfort, the light bars are available with either 4000k or 5700k Colour Temperature.
All RAPTOR lamps come complete with stainless steel pivot mounting brackets and stainless-steel fixings. As with all Raptor products, the light bar is manufactured in Australia and covered by a 3-year warranty for total peace of mind.

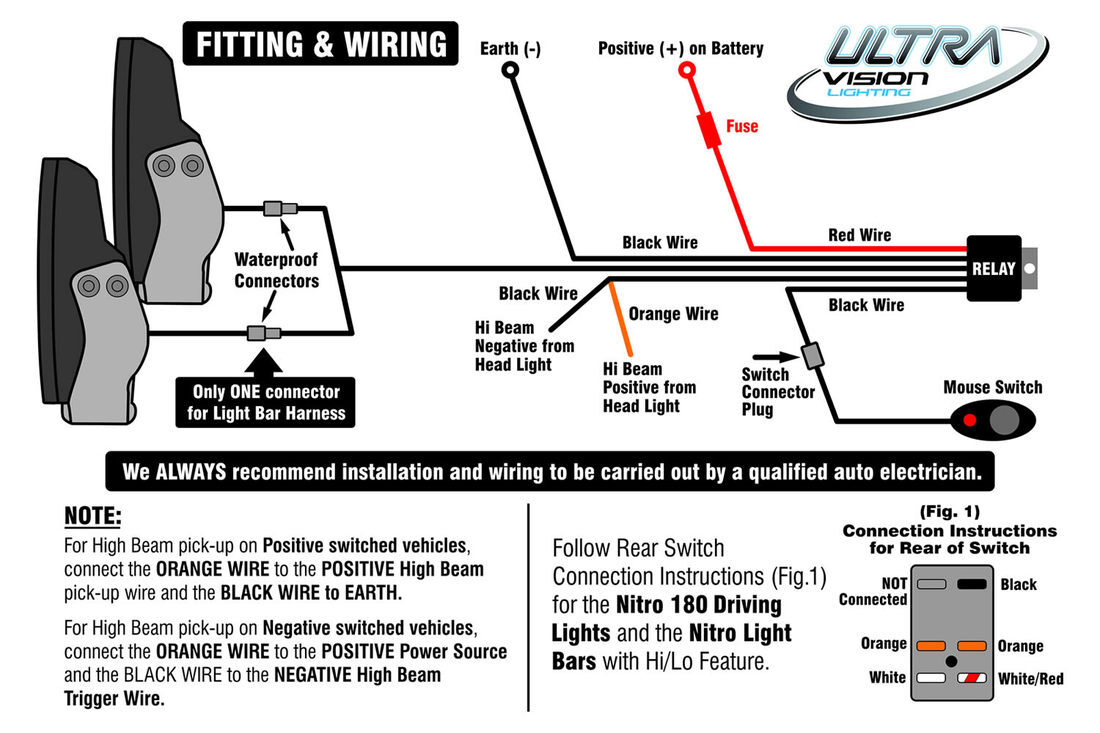

The Raptor number plate mount allows simple fitment of a powerful light bar for vehicles that have no bull bar or nudge bar. Simply remove the number plate, position the mount and screw back into place. Wiring up is the same as for any light bar or driving light set.

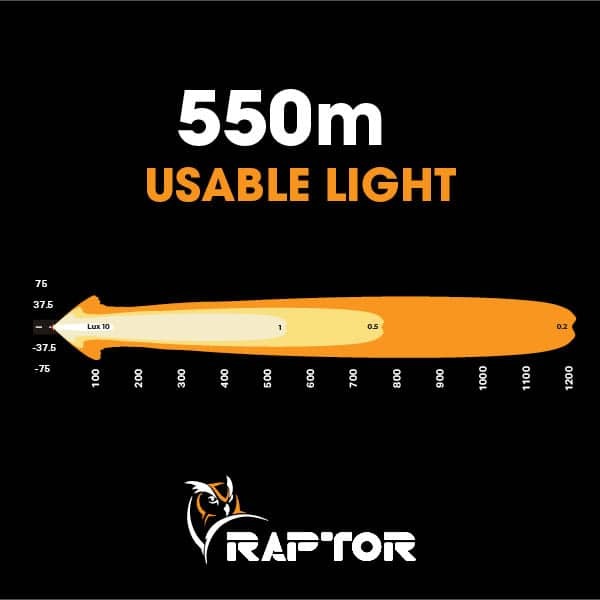

Beam Pattern
Item dispatched within 3 business day.(RAP090NPKIT)
90W RAPTOR LIGHT BAR SPECIFICATIONS | |
---|---|
Wattage | 90 Watts |
Light Source | 18 x 5w LED's |
Light Output – Raw | 10,800 Lumens |
Light Output – Effective | 8,650 Lumens |
Voltage | 9-36V |
Current Draw | 6.7A @ 13.5V |
Operating Temp. | -40 to 80 Deg C |
Waterproof Rating | IP67 |
Connector Type Plugs | 2 Pin Heavy Duty Deutsch |
Housing | Aluminium |
Lens Construction | Polycarbonate |
Bracket | Stainless Steel |
Colour Temperature | 4000K or 5700K |
Lifespan | 50,000 Hours |

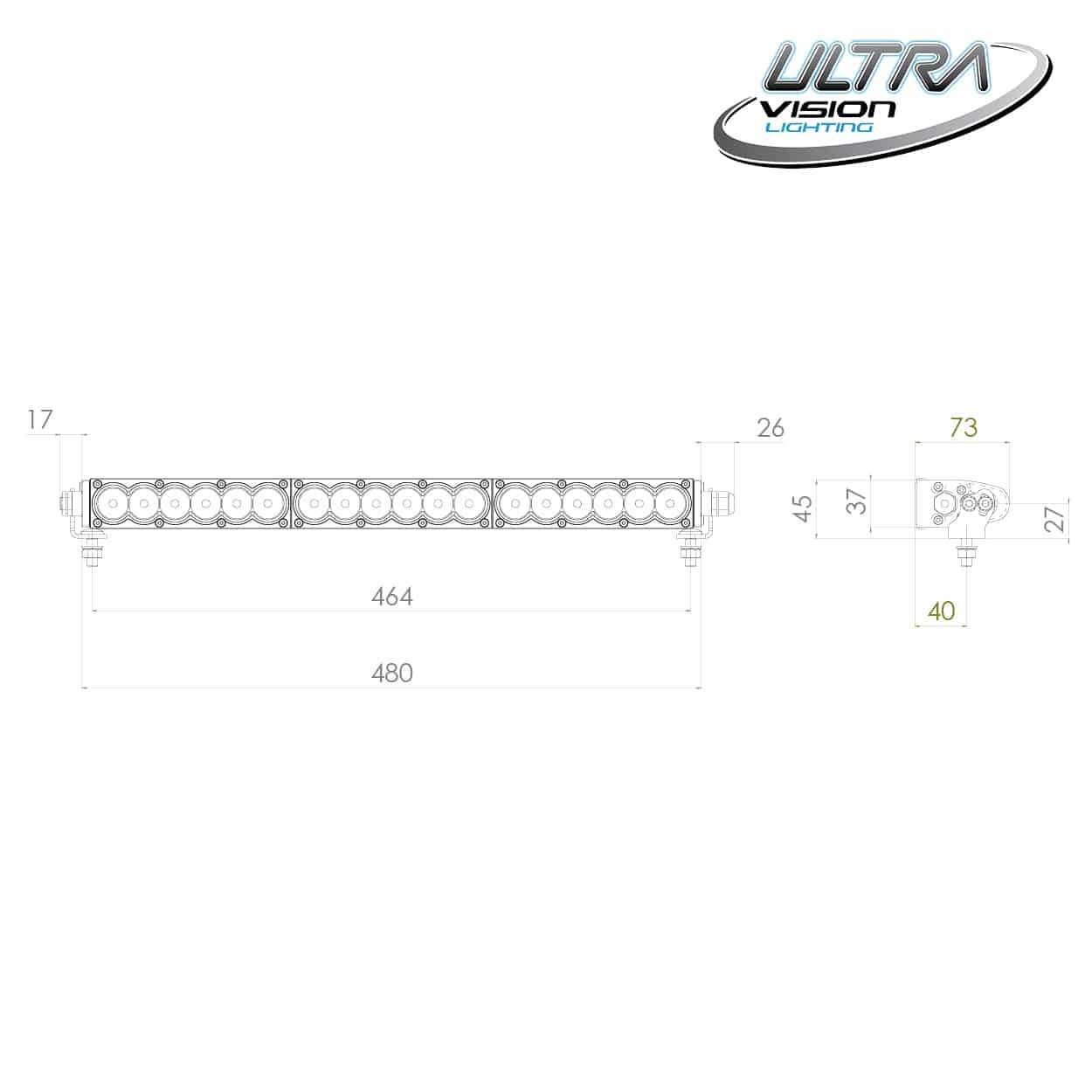

Dimensions | 523 x 45 x 73mm |
Net Weight | 1.7kg |
Mounting Suitable | Side Mounts |
Warranty | 3 Years |
Part Number | |
5700K | RAP090NPKITv2/B |
4000K | RAP090NPKIT4v2/B |
SKU | RAP090NPKIT |
Brand | Ultra Vision Lighting |
Shipping Weight | 1.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
