- RAPTOR 70w LED 7" High Power Driving Light Pair
- Made in Australia – Designed and built for the toughest environments on earth
- Available with either 4000k or 5700k Colour Temperature
- 800m usable light

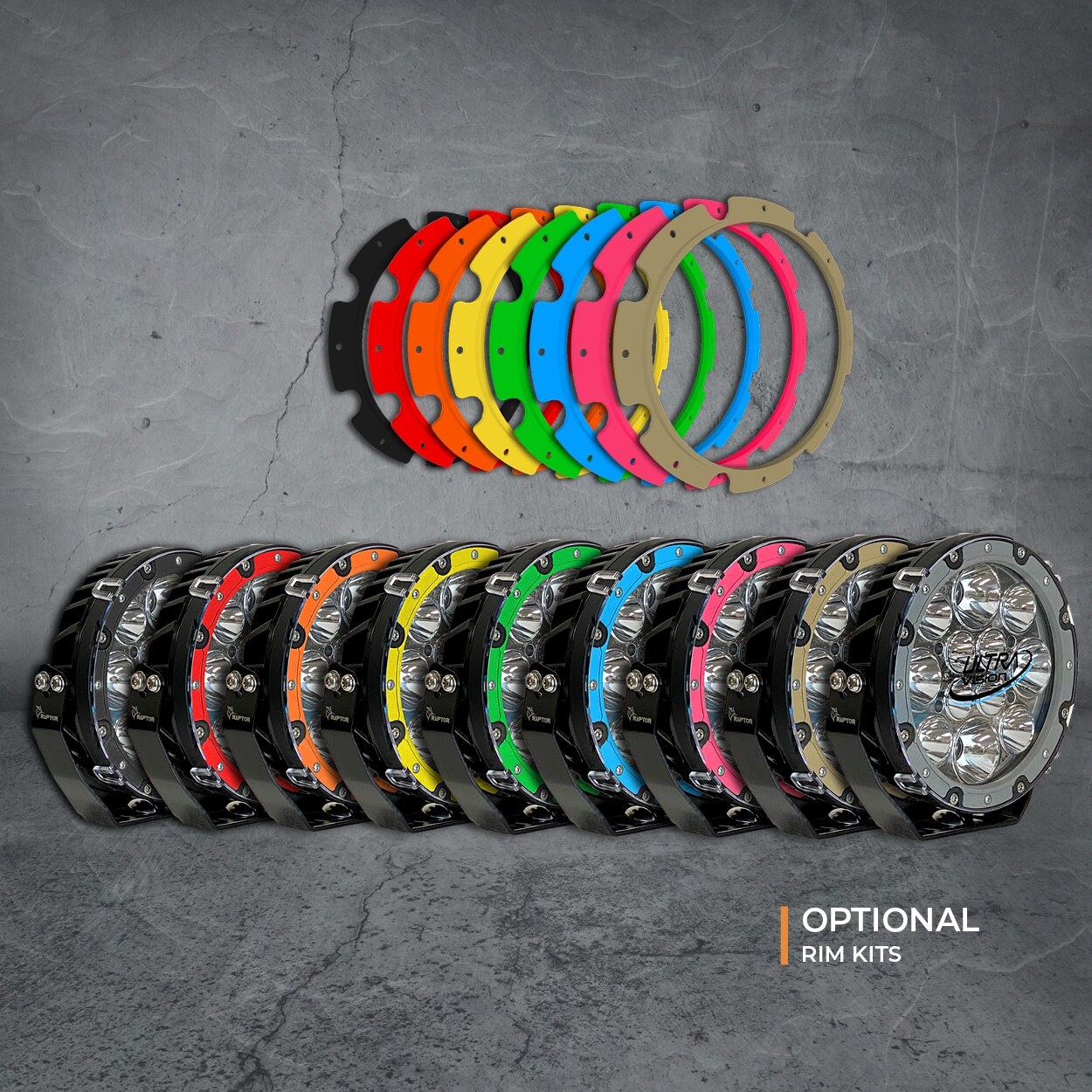

- Optional coloured rim kits available – 8 colours to choose from
- 3 Year Warranty
- Lifetime warranty on all brackets
- Wiring Harness included
If you are unsure if the part suits your vehicle, please contact us with your VIN number before purchase to avoid ordering the wrong part. Blue "Notify Me" button means item is out of stock.
Make 4 interest-free payments of $149.75 fortnightly and receive your order now.
Calculate Shipping
Australia Post eParcel - $30.00
eParcel Post & Handling Fee
Notify me when back in stock

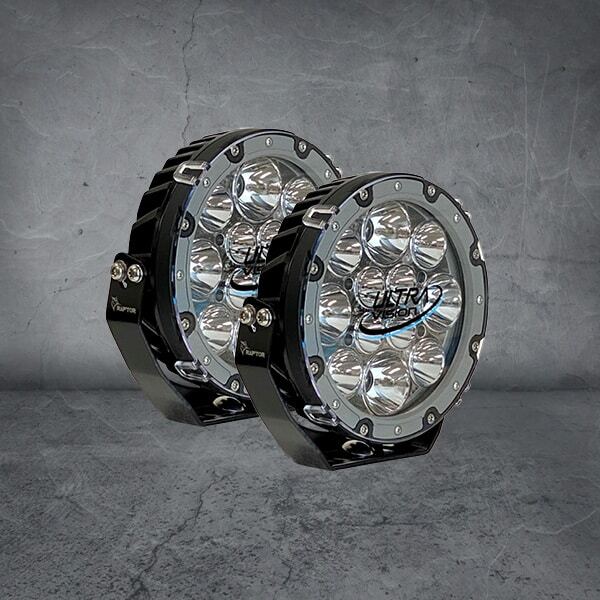

7-inch LED Driving Light (Pair)
The RAPTOR LED Driving Lights feature a high pressure die-cast aluminium housing, high impact polycarbonate lens and grey rims as standard. The superior optic designs gives a combination beam with both good distance and width from one lamp type. Along with this great quality, you can get great style too with our optional Raptor Rim Kits. Find your colour and enhance the look of your vehicle by changing the colour of your light rims to give you a unique look. With 8 colours to choose from you can make your lights your own!
All RAPTOR driving lights come with a grey rim as standard, along with a protective lens cover, easy-adjust mounting bracket, wiring harness and stainless steel brackets. To make sure you get the right option for your own driving comfort, the lamps are available with either 4000k or 5700k Colour Temperature.
All Raptor products are manufactured in Australia and covered by a 3-year warranty, adding total peace of mind.

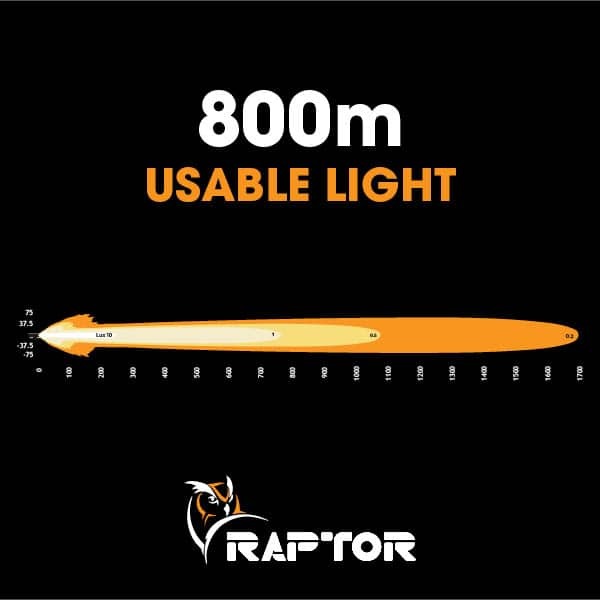

Beam Patterns
Item dispatched within 3 business day.(RAP070DL)
SPECIFICATIONS | RAPTOR 70W |
---|---|
Wattage | 70W (per lamp) |
Light Source | 12 x 6W LED’s (per lamp) |
Light Output – Raw | 16,400 Lumens (per pair) |
Light Output – Effective | 13,284 Lumens (per pair) |
Voltage | 9-36V |
Current Draw | 10A @ 13.5V (per pair) |
Operating Temperature | -40°C to +80°C |
Waterproof rating | IP68 |
Connector Type | 2 Pin Heavy Duty Deutsch |
Housing | Die-Cast aluminium |
Lens Construction | Polycarbonate |
Bracket | Stainless Steel |
Colour Temperature | 4000K or 5700K |
Lifespan | 50,000 Hours |

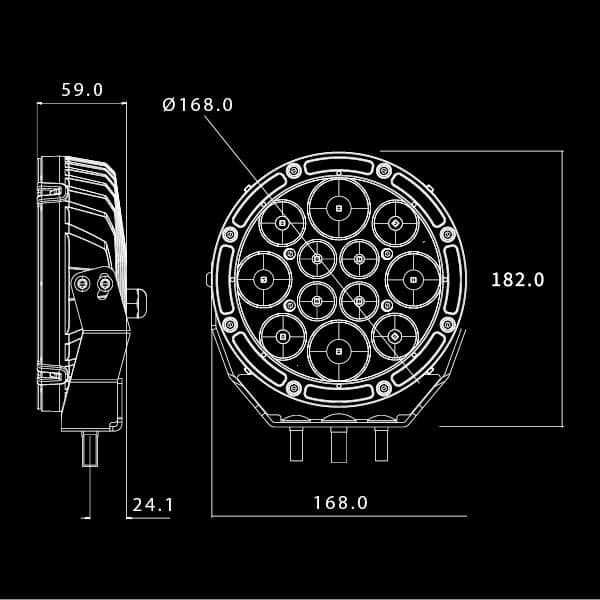

Diameter | 170mm |
Net Weight | 1.3kg (per lamp) |
Mounting Suitable | Stainless Steel Bracket |
Beams Available | Combo |
Warranty | 3 Years |

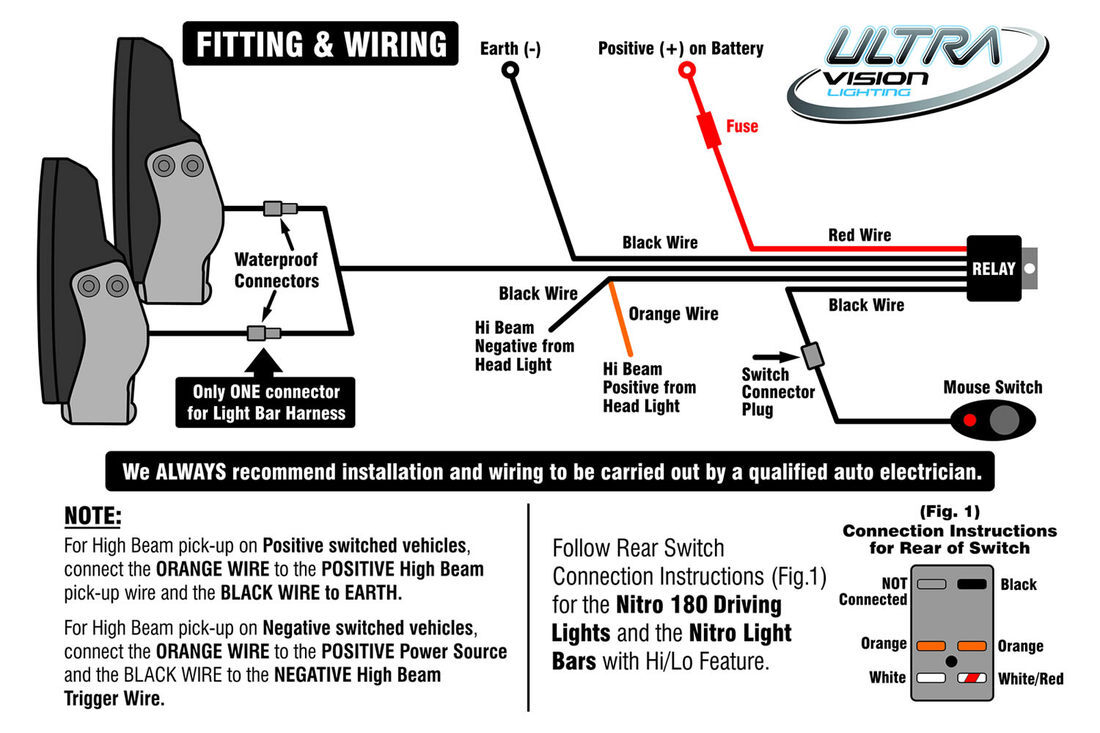

Hi/Lo Wiring Harness included | Yes |
PART NUMBERS | |
Raptor 70 4000K | RAP070DL4V2/PR |
Raptor 70 5700K | RAP070DLV2/PR |
SKU | RAP070DL |
Brand | Ultra Vision Lighting |
Shipping Weight | 1.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
