- Nitro Maxx 55W LED Light Bar Kit (Pair)
- 2x Nitro Maxx 55W LED 7-inch Light Bars

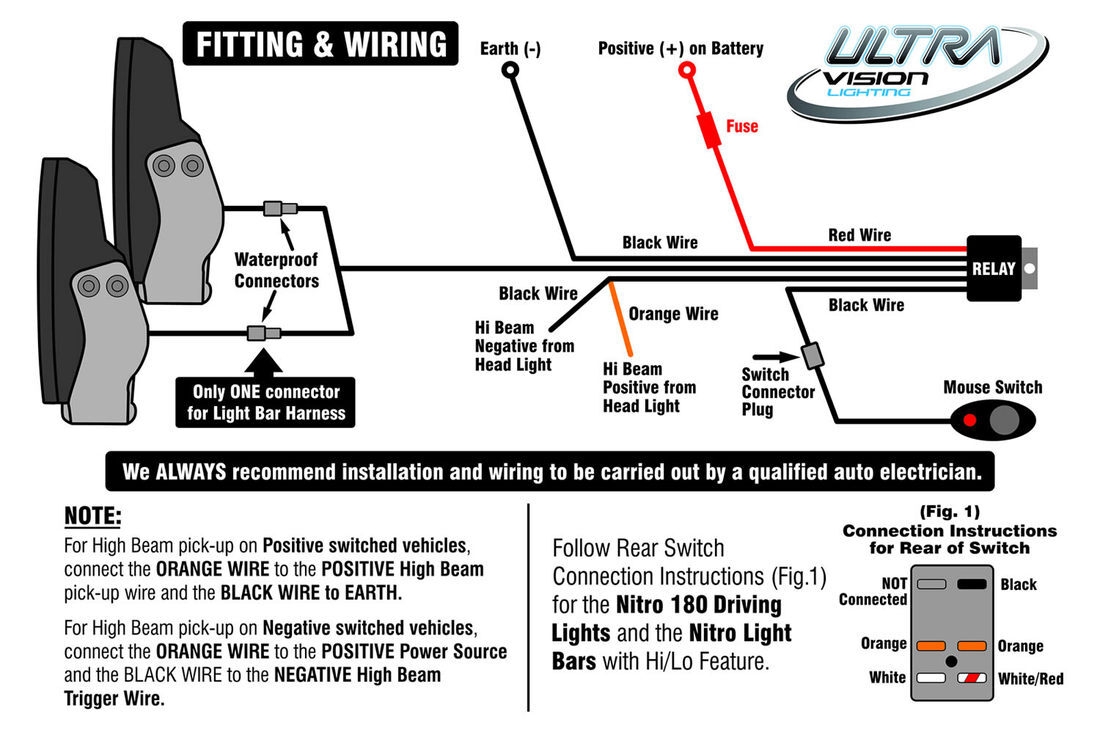

- 1x Heavy-duty wiring harness with 2 Deutsch Connectors
- 2x Black powder coated stainless steel U-shaped mounting brackets
- 10mm anti-theft nut kit
- Widr® Optic – this unique reflector delivers market leading output, achieving huge distance with excellent spread
- Combined usable light – 900m
- Designed and made in Australia for the toughest environments on earth
- Available in either 4500k or 5700k Colour Temperature
- 5 year warranty
- Wiring harness and anti-theft nuts included
- Black powder coated stainless steel U-shaped mounting brackets included
If you are unsure if the part suits your vehicle, please contact us with your VIN number before purchase to avoid ordering the wrong part. Blue "Notify Me" button means item is out of stock.
Make 4 interest-free payments of $203.75 fortnightly and receive your order now.
Calculate Shipping
Australia Post eParcel - $30.00
eParcel Post & Handling Fee
Notify me when back in stock

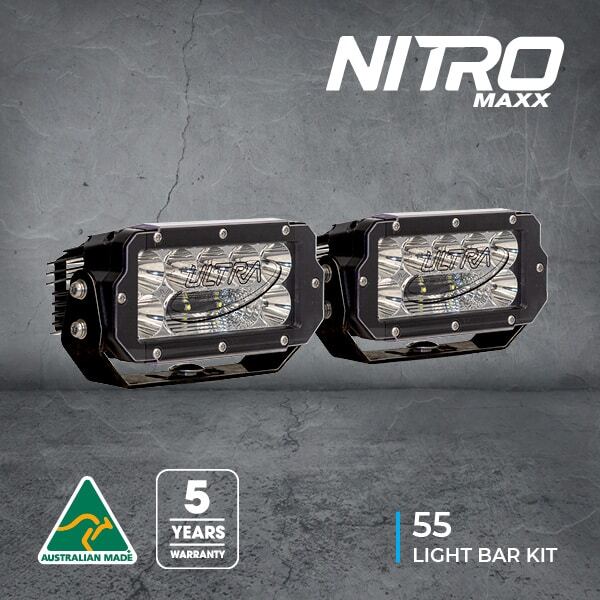

7-inch LED Light Bar Kit
Our Nitro Maxx 55W 7″ Light Bar kits give you everything you need to enhance your vehicle’s lighting and add some power to keep you safe and seen in all conditions.
This comprehensive kit comes complete with:
These small light bars pack some serious punch! They feature our Widr® optic that gives incredible width, plus our Contrl® optic that throws out that unbelievable distance for such small units, and they come with a 5-year warranty!

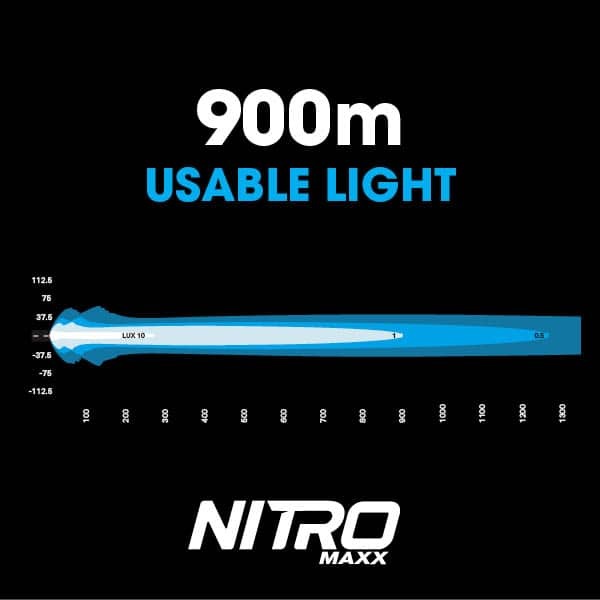

Not only that, but combined they throw out 900m of usable light.
These light bars are a great option if you have a bull bar with little room and may not have the space for driving lights (even small ones!), or want a simpler look that still gives them Ultra Vision power – as these are like another set of driving lights in themselves!
Item dispatched within 3 business day.(DVM055LEDPR)
SPECIFICATION | 55W NITRO LIGHT BAR | 105W NITRO LIGHT BAR | 155W NITRO LIGHT BAR |
Wattage | 50 Watts | 100 Watts | 150 Watts |
Light Source | 10 x 5w LEDs | 20 x 5w LED's | 30 x 5w LED's |
Light Output – Raw | 6,160 Lumens | 12,320 Lumens | 18,480 Lumens |
Light Output – Effective | 4,432 Lumens | 8,865 Lumens | 13,295 Lumens |
Voltage | 9-36V | 9-36V | 9-36V |
Current Draw | 4A | 8A | 12A |
Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C | -40 to 80 Deg C |
Waterproof Rating | IP68 | IP68 | IP68 |

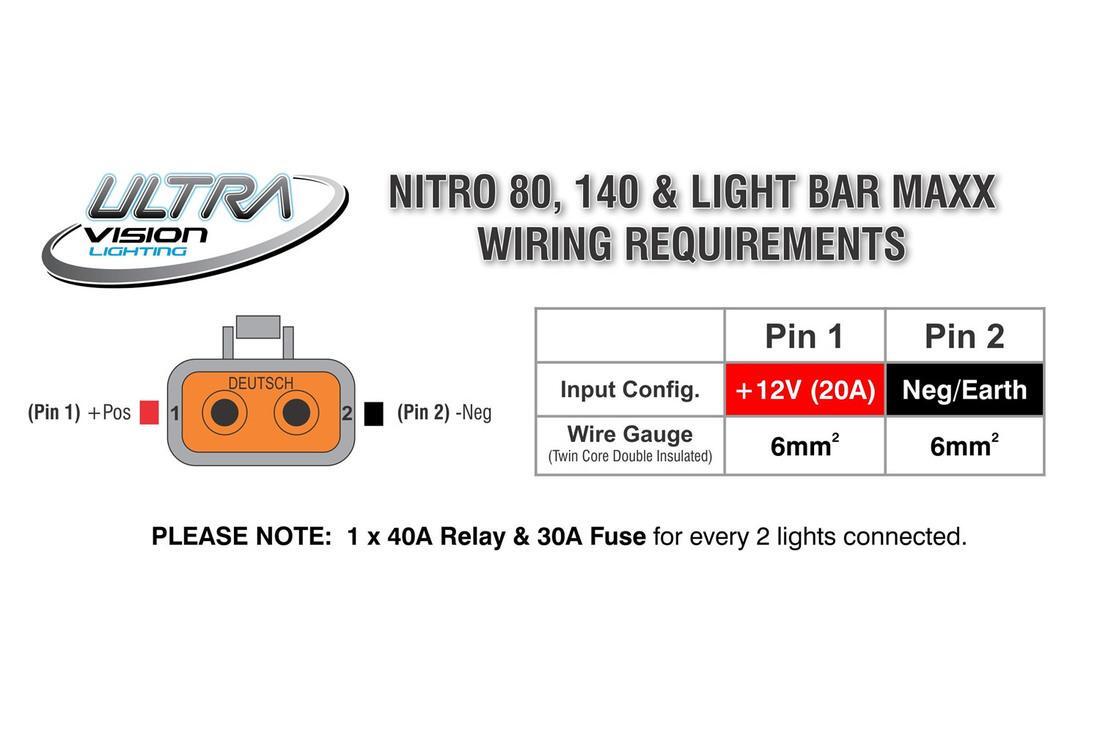

Connector Type Plugs | 2 Pin std Deutsch | 2 Pin std Deutsch | 2 Pin std Deutsch |
Housing | 6063 T5 Aluminium | 6063 T5 Aluminium | 6063 T5 Aluminium |
Outer Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate |
Brackets | Sliding Base / Side Mounts | Sliding Base / Side Mounts | Sliding Base / Side Mounts |
Colour Temperature | 4500K or 5700K | 4500K or 5700K | 4500K or 5700K |
Lifespan | 50,000 Hours | 50,000 Hours | 50,000 Hours |
Dimensions | 185 x 92 x 84mm | 324 x 92 x 84mm | 465 x 92 x 84mm |
Net Weight | 1.1 kg | 1.9 kg | 2.5kg |
Mounting Suitable | Base or Side Mount | Base or Side Mount | Base or Side Mount |
Beams Type | Combo and Widr | Combo and Widr | Combo and Widr |
Warranty | 5 Years | 5 Years | 5 Years |
Harness Included | Yes | Yes | Yes |
SPECIFICATIONS | 205W NITRO LIGHT BAR | 255W NITRO LIGHT BAR | 305W NITRO LIGHT BAR |
Wattage | 200 Watts | 250 Watts | 300 Watts |
Light Source | 40 x 5w LED's | 50 x 5w LED's | 60 x 5w LED's |
Light Output – Raw | 24,640 Lumens | 30,800 Lumens | 36,960 Lumens |
Light Output – Effective | 17,724 Lumens | 22,175 Lumens | 26,590 Lumens |
Voltage | 9-36V | 9-36V | 9-36V |
Current Draw | 15A | 18A | 24A |
Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C | -40 to 80 Deg C |
Waterproof Rating | IP68 | IP68 | IP68 |
Connector Type Plug | 2 Pin std Deutsch | 2 Pin std Deutsch | 2 Pin std Deutsch |
Housing | 6063 T5 Aluminium | 6063 T5 Aluminium | 6063 T5 Aluminium |
Outer Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate |
Brackets | Sliding Base / Side Mounts | Sliding Base / Side Mounts | Sliding Base / Side Mounts |
Colour Temperature | 4500K or 5700K | 4500K or 5700K | 4500K or 5700K |
Lifespan | 50,000 Hours | 50,000 Hours | 50,000 Hours |
Dimensions | 605 x 92 x 84mm | 745 x 92 x 84mm | 885 x 92 x 84mm |
Net Weight | 3.4kg | 4.3kg | 5.3kg |
Mounting Suitable | Base and Side Mount | Base and Side Mount | Base or Side Mount |
Beam Types | Combo and Widr | Combo and Widr | Combo and Widr |
Warranty | 5 Years | 5 Years | 5 Years |
Harness Included | Yes | Yes | Yes |
SPECIFICATIONS | 355W NITRO LIGHT BAR | 405W NITRO LIGHT BAR | |
Wattage | 350 Watts | 400 Watts | |
Light Source | 70 x 5w LED's | 80 x 5w LED's | |
Light Output – Raw | 43,100 Lumens | 48,800 Lumens | |
Light Output – Effective | 31,580 Lumens | 37,750 Lumens | |
Voltage | 9-36V | 9-36V | |
Current Draw | 26A | 26A | |
Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C | |
Waterproof Rating | IP68 | IP68 | |
Connector Type Plug | 2 Pin std Deutsch | 2 Pin std Deutsch | |
Housing | 6063 T5 Aluminium | 6063 T5 Aluminium | |
Outer Lens Construction | Polycarbonate | Polycarbonate | |
Brackets | Sliding Base / Side Mounts | Sliding Base / Side Mounts | |
Colour Temperature | 4500K or 5700K | 4500K or 5700K | |
Lifespan | 50,000 Hours | 50,000 Hours | |
Dimensions | 1025 x 92 x 84mm | 1165 x 92 x 84mm | |
Net Weight | 6.9kg | 7.7kg | |
Mounting Suitable | Base or Side Mount | Base or Side Mount | |
Beam Types | Combo and Widr | Combo and Widr | |
Warranty | 5 Years | 5 Years | |
Harness Included | Yes | Yes |
WEIGHT | 1.1 kg |
---|---|
DIMENSIONS | 185 × 92 × 84 cm |
COLOUR TEMPERATURE |
4500k, 5700k |
HI/LO |
Yes, No |
RIM COLOUR |
Black, Chrome |
MOUNTING TYPE |
Base Mounts, Side Mounts |
SKU | DVM055LEDPR |
Brand | Ultra Vision Lighting |
Shipping Weight | 1.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
