- Nitro Maxx 220W 52" Single Row Light Bar
- NEW Compact and streamlined design
- Widr® Optic – This unique reflector delivers market leading output, achieving excellent spread
- Usable light – 1100m
- Designed and Made in Australia for the toughest environments on earth
- Available with either 4500k or 5700k Colour Temperature
- Side mounts with a lifetime warranty
- 5 Year Warranty

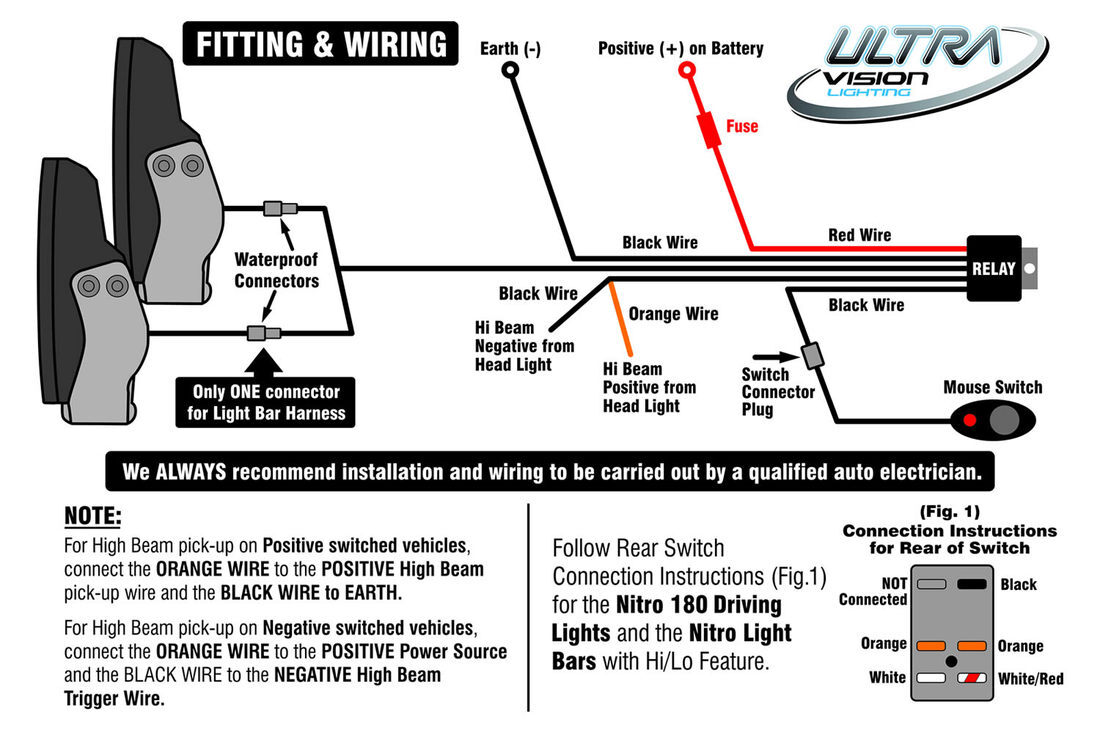

- A wiring harness and mounting hardware are included free of charge
If you are unsure if the part suits your vehicle, please contact us with your VIN number before purchase to avoid ordering the wrong part. Blue "Notify Me" button means item is out of stock.
NITRO MAXX 52-INCH LED SINGLE ROW LIGHT BAR - 220W - 5700K
More infoMake 4 interest-free payments of $299.75 fortnightly and receive your order now.
More info »Calculate Shipping
Australia Post eParcel - $30.00
eParcel Post & Handling Fee

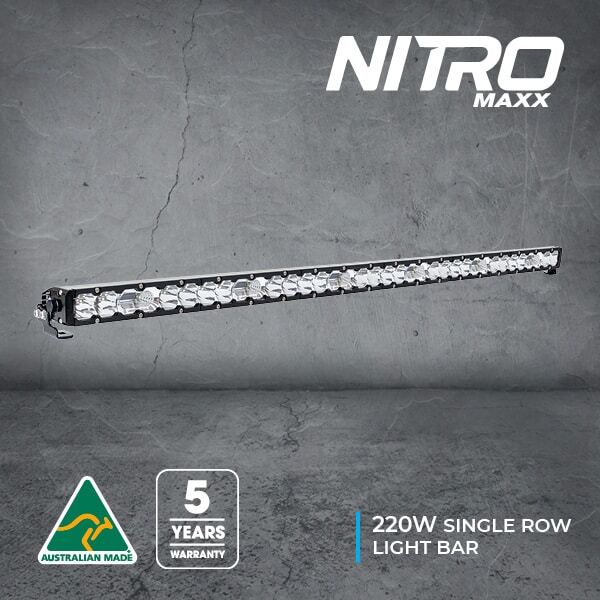

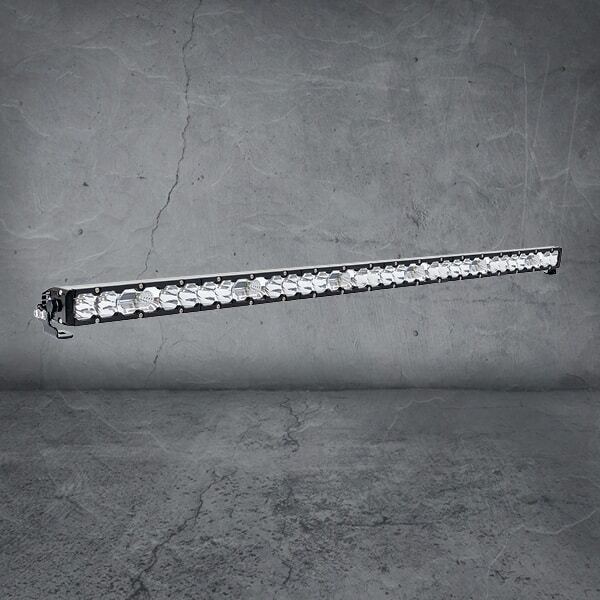

52-inch Single Row LED Light Bar
The Nitro Maxx 220W 52” Single Row Light Bars are sleek and streamlined, giving you mighty performance in a compact design. Featuring our Contrl® and Widr® optics that combine to produce 1100m of usable light and incredible beam width, there’s nowhere they can’t go.
Designed and made right here in Australia, they’re ready to take on some of the toughest terrains on earth. Available with either 4500K or 5700K colour temperatures, backed by our 5-year warranty and coming with side mounts and a wiring harness, these light bars pack a powerful punch.

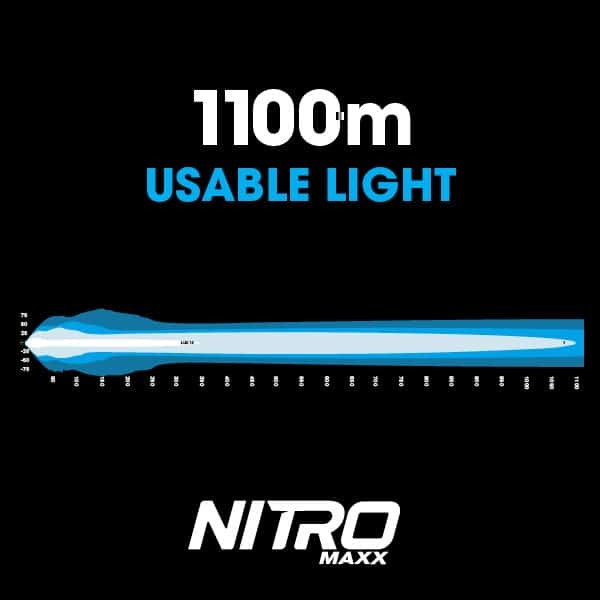

Beam Pattern
(Click to enlarge)
(NM220SRLB)
| NITRO MAXX 220W 52" SINGLE ROW LIGHT BAR | |
|---|---|
| Wattage | 220 Watts |
| Light Source | 36 x Osram LEDs |
| Light Output – Raw | 27398 Lumens |
| Light Output | 20688 Lumens |
| Voltage | 9v-36vDC |
| Current Draw | 16.3A |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP68 |

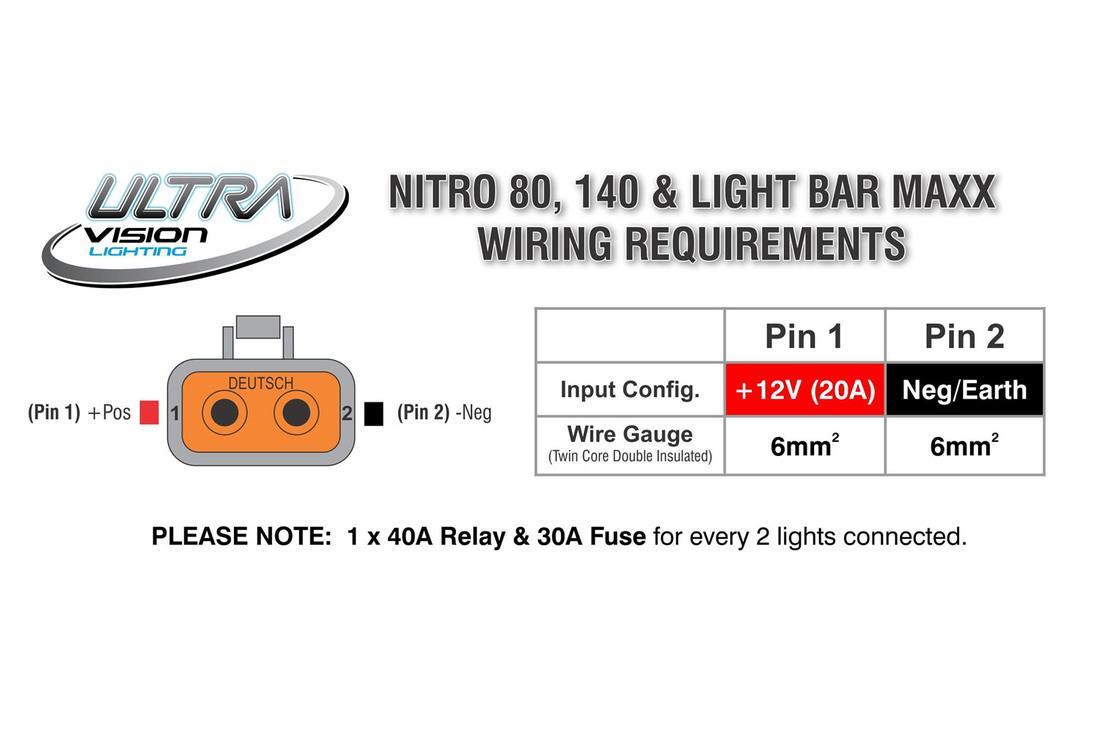

| Connector Type Plug | 2 Pin std Deutsch |
| Housing | 6063 T5 Aluminium |
| Outer Lens Construction | Polycarbonate |
| Brackets | Stainless Steel |
| Colour Temperature | 4500K or 5700K |
| Lifespan | 50,000 Hours |

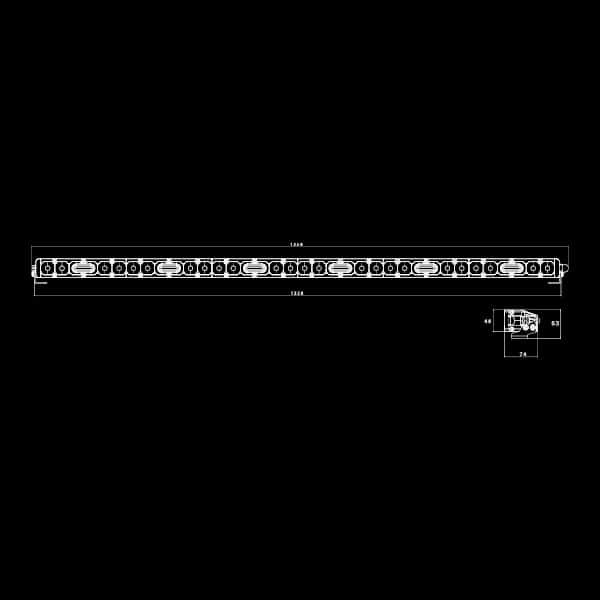

| Dimensions | 1330mm / 52" |
| Net Weight | 4.3kg |
| Mounting Suitable | Side Mounts |
| Beam Types | Combo |
| Warranty | 5 Years |
| Harness Included | Yes |
| Part Number | |
| 4500K | NM220SCLB4 |
| 5700K | NM220SCLB |
| SKU | NM220SRLB |
| Brand | Ultra Vision Lighting |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
