Nitro Maxx 20W 7" Single Row Light Bar

If you are unsure if the part suits your vehicle, please contact us with your VIN number before purchase to avoid ordering the wrong part. Blue "Notify Me" button means item is out of stock.

NITRO MAXX 7-INCH LED SINGLE ROW LIGHT BAR - 20W - WIDR BEAM - 5700K

More info.

Make 4 interest-free payments of $66.00 fortnightly and receive your order now.

up to 12 MONTHS INTEREST FREE with

Calculate Shipping

Australia Post eParcel - $30.00
eParcel Post & Handling Fee

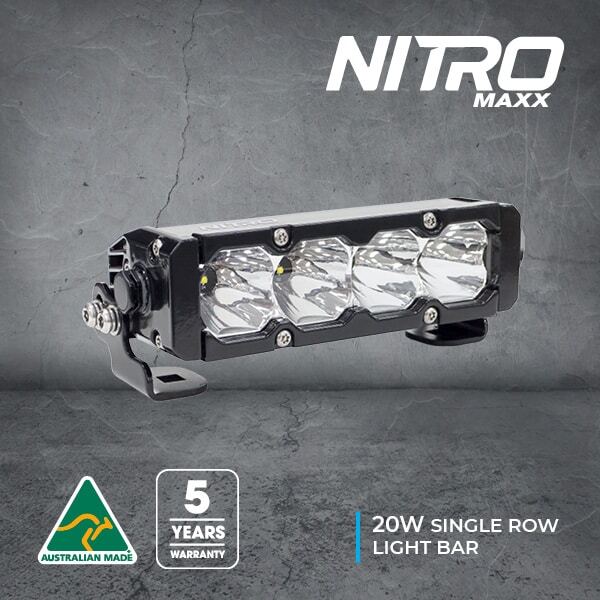

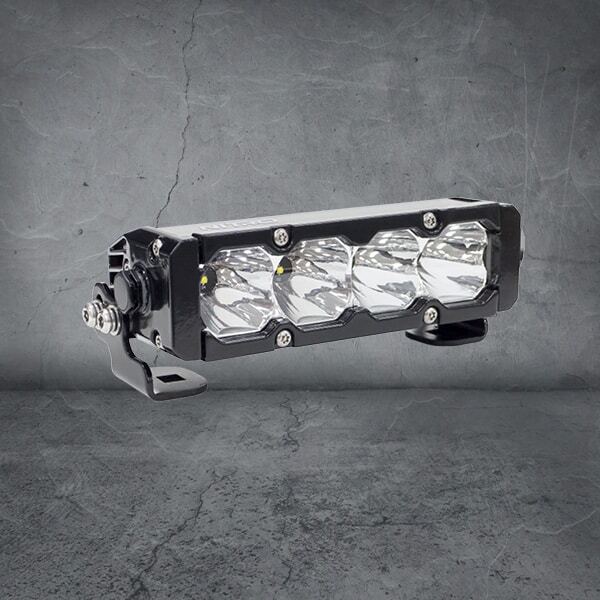

7-inch Single Row Light Bar

The Nitro Maxx 20W 7-inch Single Row Light Bars give you all the power of Ultra Vision in a sleek, streamlined and compact design. Available with either a spot beam producing 380m of usable light, or with a Widr® beam producing 88m, they are perfect as a versatile alternative to driving lights, or for use under a canopy when camping.

Designed and made right here in Australia, they’re ready to take on some of the toughest terrains on earth. Available with either 4500K or 5700K colour temperatures, backed by our 5-year warranty and coming with side mounts and a wiring harness, these light bars pack a powerful punch.

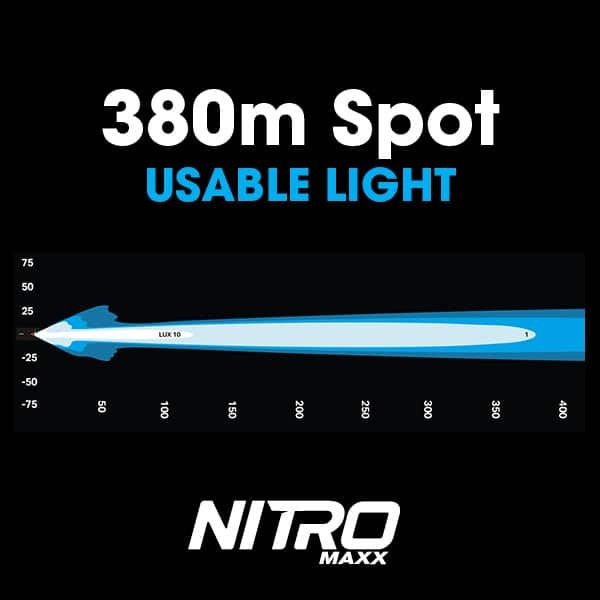

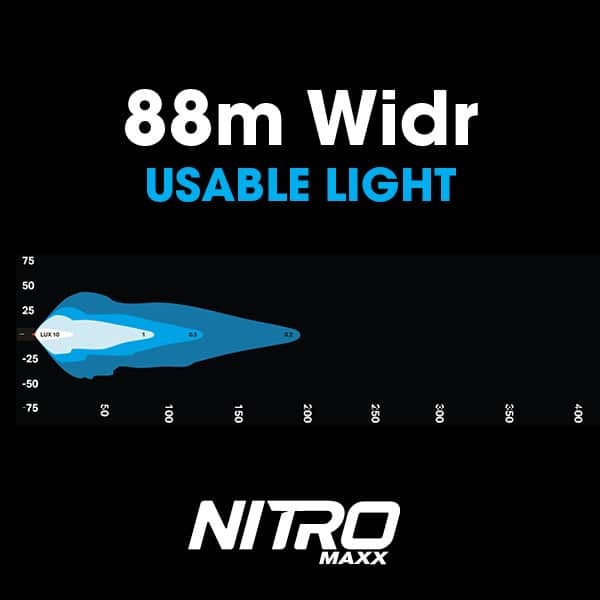

Beam Pattern (Click to enlarge)

Item dispatched within 3 business day.

(NM20SRLB)

NEW Compact and streamlined design
Option to have Widr® Optic – This unique reflector delivers market leading output, achieving excellent spread
Usable light Widr® – 88m
Usable light Spot – 380m
Designed and Made in Australia for the toughest environments on earth
Available with either 4500k or 5700k Colour Temperature
Side mounts with a lifetime warranty
5 Year Warranty

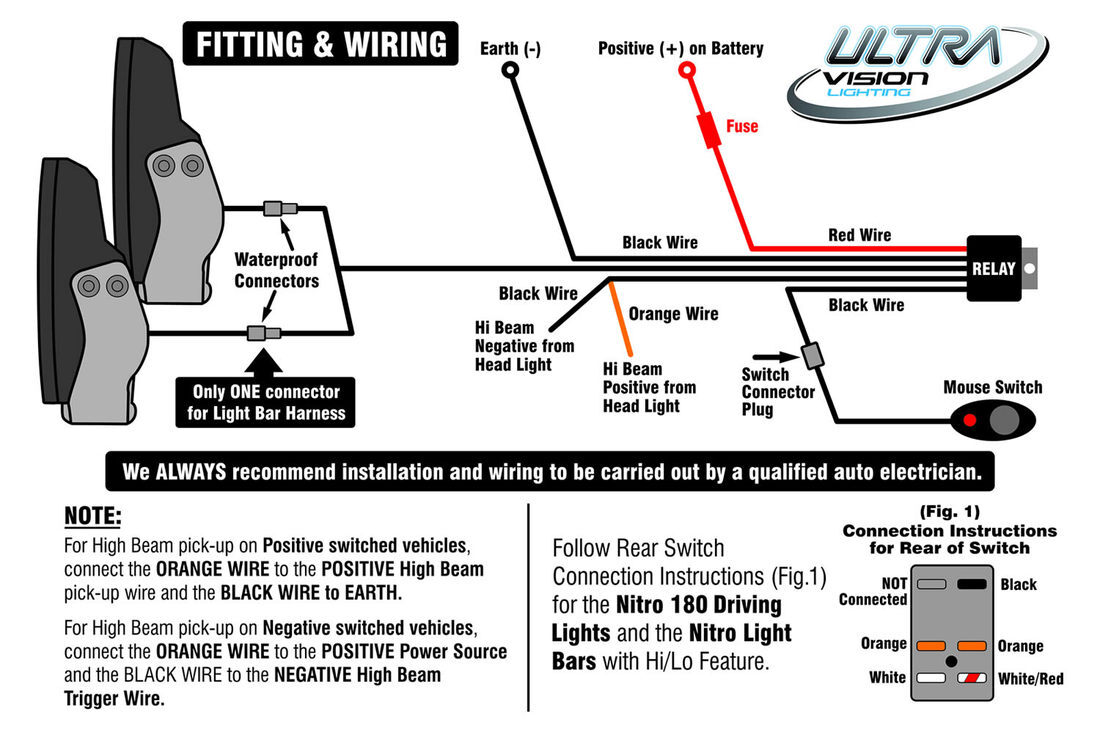

A wiring harness and mounting hardware are included free of charge

Part Number
Widr® 5700K	NM20SWLB
Widr® 4500K	NM20SWLB4
Spot 5700K	NM20SSLB
Spot 4500K	NM20SSLB4
Wattage	20 Watts
Light Source	4 x Osram LEDs
Light Output – Raw	2974 Lumens
Light Output	2246 Lumens
Voltage	9v-36vDC
Current Draw	1.48A
Operating Temperature	-40 to 80 Deg C
Waterproof Rating	IP68

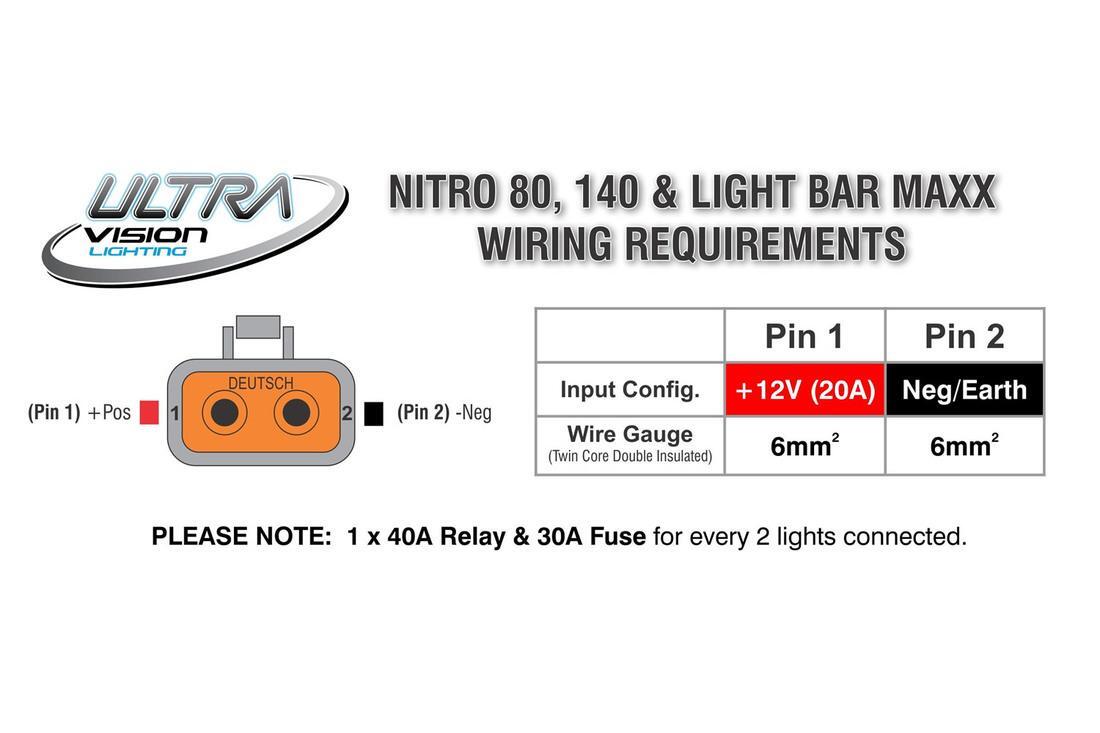

Connector Type Plug	2 Pin std Deutsch
Housing	6063 T5 Aluminium
Outer Lens Construction	Polycarbonate
Brackets	Stainless Steel
Colour Temperature	4500K or 5700K
Lifespan	50,000 Hours

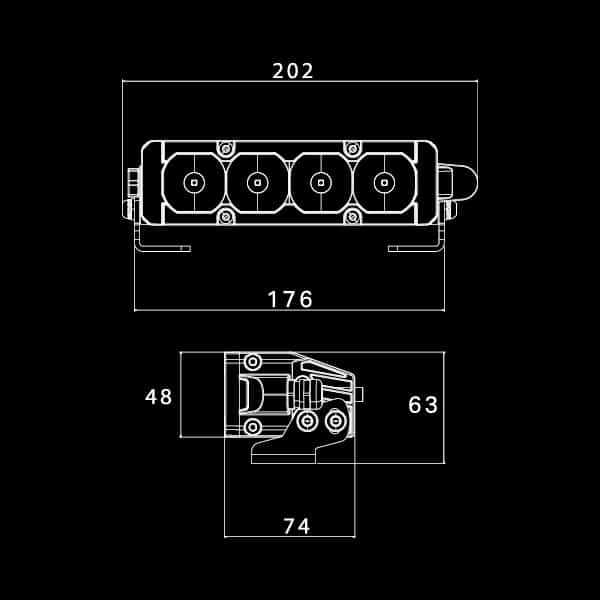

Dimensions	175mm / 7"
Net Weight	750g
Mounting Suitable	Side Mounts
Beam Types	Widr OR Spot
Warranty	5 Years
Harness Included	Yes
