- NITRO Maxx 205W 24" LED Light bar
- Both Hi-Output & Lo-Output functions utilise 5700K LED’s, achieving 170° spread of light with our patented Widr® reflector.
- The Hi-Output function utilises a combination of 4000K and 5700K LED’s (4500K combined average) which gives the perfect open road driving experience with optimal distance and a 170° spread of light.
- The Lo-Output * feature drops the light output to 3 x 4000K LEDs utilising our patented Widr® reflector for 170° of spread. This is perfect for foggy or dusty conditions and for reducing the glare on road signs.
- NEW Performance you won’t believe – unrivalled distance and width outputs
- NEW Widr® Optic – This unique reflector delivers market leading output, achieving huge distance with excellent spread
- NEW Usable light – now 1300M
- Designed and Made in Australia for the toughest environments on earth
- Available with either 4500k or 5700k Colour Temperature
- Both side and base mounts are available
- 5 Year Warranty
- A wiring harness and anti-theft nuts are included free of charge
- Includes clear protective lens covers
If you are unsure if the part suits your vehicle, please contact us with your VIN number before purchase to avoid ordering the wrong part. Blue "Notify Me" button means item is out of stock.
Make 4 interest-free payments of $234.75 fortnightly and receive your order now.
Calculate Shipping
Australia Post eParcel - $30.00
eParcel Post & Handling Fee
Notify me when back in stock

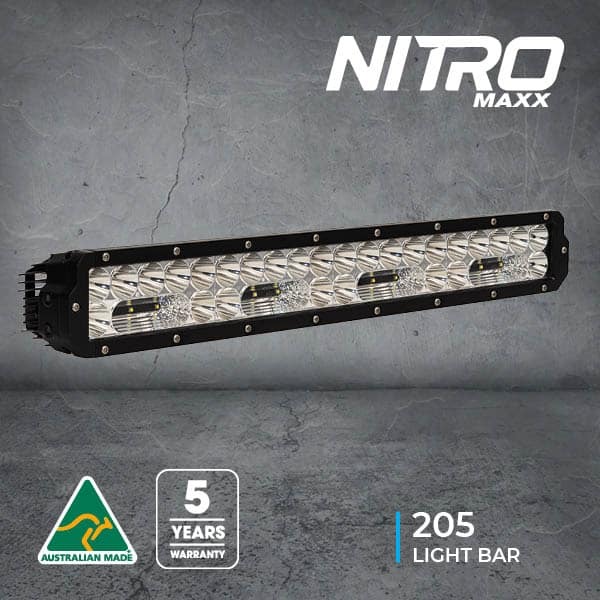

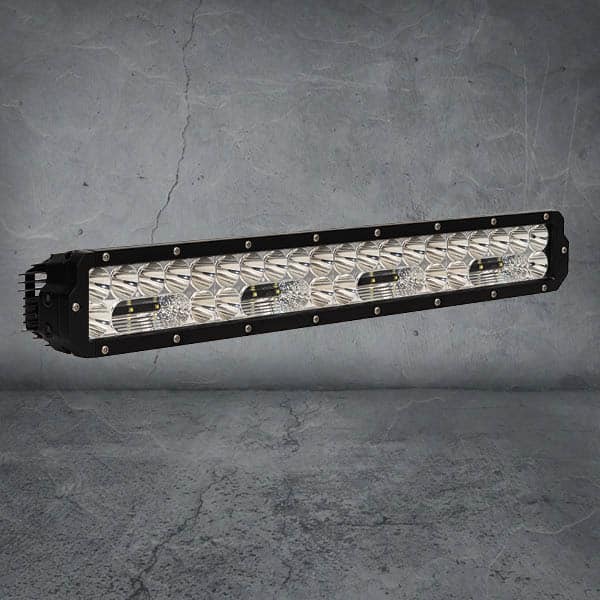

24-inch LED Light bar
The new Nitro Maxx range of light bars now have boosted performance, with the updated 205W LED light bar delivering an increased beam distance of 70%.
The Nitro light bars have become a hugely popular addition to the Nitro Maxx range. Featuring the Widr® optic for width and a Contrl® optic for distance, the Nitro Light Bar takes performance to another level.
The Hi/Lo function provides you with an even greater amount of flexibility in a range of driving conditions.
For the 5700K Hi & Lo model light bars:
For the 4500K Hi & Lo model light bars:
*Please note the Lo-Output feature doesn’t work alongside the vehicle’s low beam, it just reduces the amount of light coming out of the light bar, while the vehicle’s high beam is still on.
Both side and base mounts are available, ensuring that fitment is simple in any application.

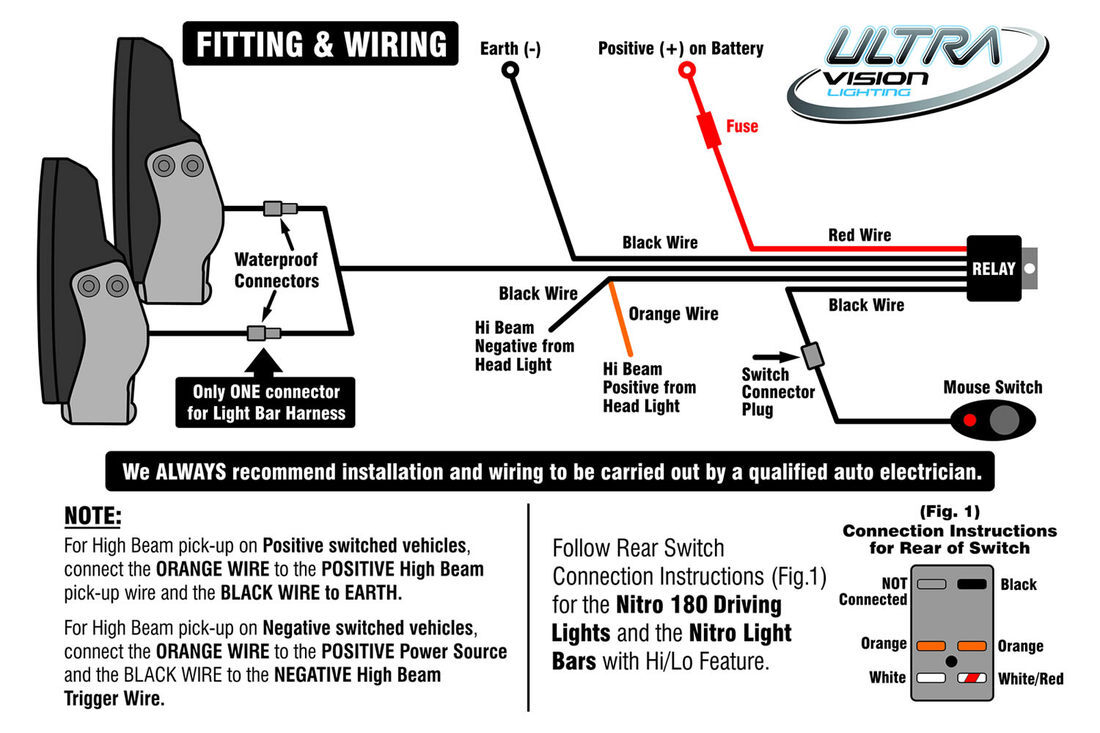

A wiring harness and anti-theft nuts are supplied with each bar. Please specify base or side mounting at the time of ordering.

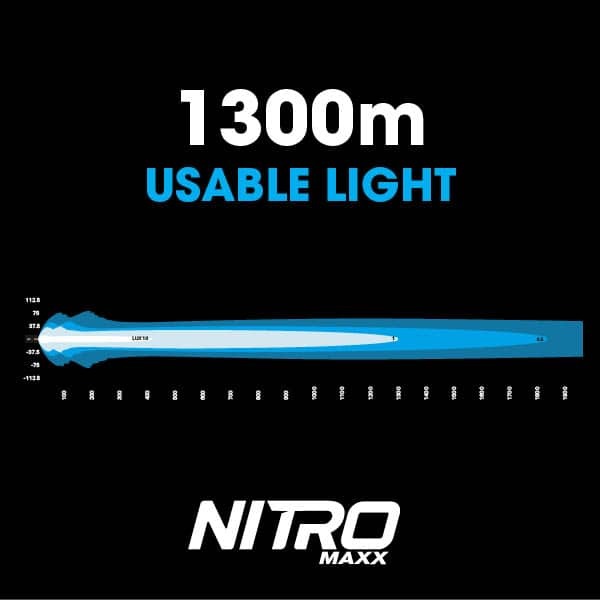

Beam Pattern
Item dispatched within 3 business day.(DVM205LED)
SPECIFICATION | 55W NITRO LIGHT BAR | 105W NITRO LIGHT BAR | 155W NITRO LIGHT BAR |
Wattage | 50 Watts | 100 Watts | 150 Watts |
Light Source | 10 x 5w LEDs | 20 x 5w LED's | 30 x 5w LED's |
Light Output – Raw | 6,160 Lumens | 12,320 Lumens | 18,480 Lumens |
Light Output – Effective | 4,432 Lumens | 8,865 Lumens | 13,295 Lumens |
Voltage | 9-36V | 9-36V | 9-36V |
Current Draw | 4A | 8A | 12A |
Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C | -40 to 80 Deg C |
Waterproof Rating | IP68 | IP68 | IP68 |

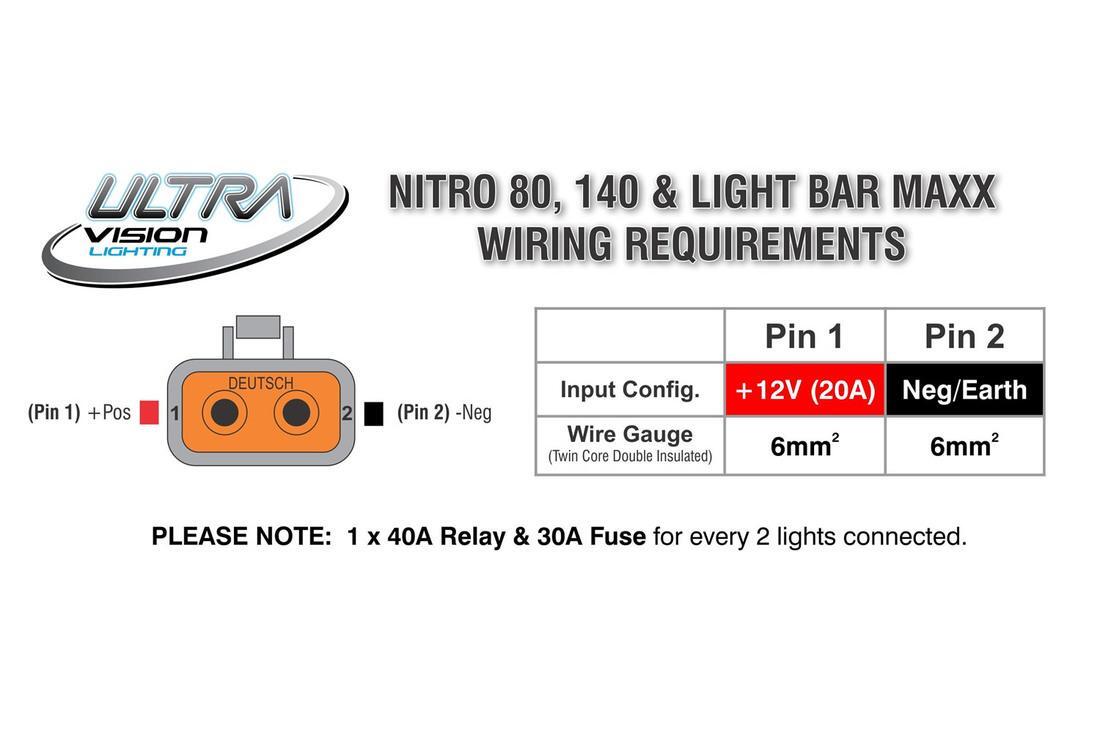

Connector Type Plugs | 2 Pin std Deutsch | 2 Pin std Deutsch | 2 Pin std Deutsch |
Housing | 6063 T5 Aluminium | 6063 T5 Aluminium | 6063 T5 Aluminium |
Outer Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate |
Brackets | Sliding Base / Side Mounts | Sliding Base / Side Mounts | Sliding Base / Side Mounts |
Colour Temperature | 4500K or 5700K | 4500K or 5700K | 4500K or 5700K |
Lifespan | 50,000 Hours | 50,000 Hours | 50,000 Hours |
Dimensions | 185 x 92 x 84mm | 324 x 92 x 84mm | 465 x 92 x 84mm |
Net Weight | 1.1 kg | 1.9 kg | 2.5kg |
Mounting Suitable | Base or Side Mount | Base or Side Mount | Base or Side Mount |
Beams Type | Combo and Widr | Combo and Widr | Combo and Widr |
Warranty | 5 Years | 5 Years | 5 Years |
Harness Included | Yes | Yes | Yes |
SPECIFICATIONS | 205W NITRO LIGHT BAR | 255W NITRO LIGHT BAR | 305W NITRO LIGHT BAR |
Wattage | 200 Watts | 250 Watts | 300 Watts |
Light Source | 40 x 5w LED's | 50 x 5w LED's | 60 x 5w LED's |
Light Output – Raw | 24,640 Lumens | 30,800 Lumens | 36,960 Lumens |
Light Output – Effective | 17,724 Lumens | 22,175 Lumens | 26,590 Lumens |
Voltage | 9-36V | 9-36V | 9-36V |
Current Draw | 15A | 18A | 24A |
Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C | -40 to 80 Deg C |
Waterproof Rating | IP68 | IP68 | IP68 |
Connector Type Plug | 2 Pin std Deutsch | 2 Pin std Deutsch | 2 Pin std Deutsch |
Housing | 6063 T5 Aluminium | 6063 T5 Aluminium | 6063 T5 Aluminium |
Outer Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate |
Brackets | Sliding Base / Side Mounts | Sliding Base / Side Mounts | Sliding Base / Side Mounts |
Colour Temperature | 4500K or 5700K | 4500K or 5700K | 4500K or 5700K |
Lifespan | 50,000 Hours | 50,000 Hours | 50,000 Hours |

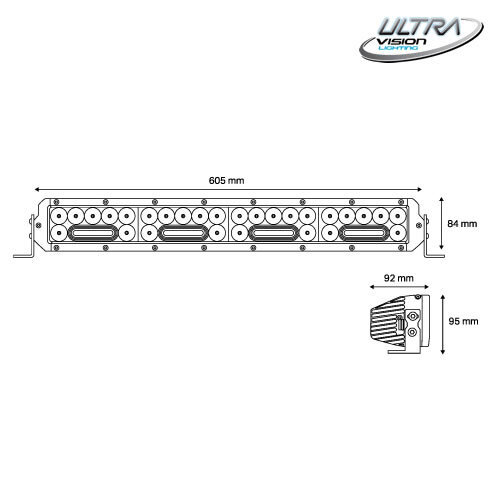

Dimensions | 605 x 92 x 84mm | 745 x 92 x 84mm | 885 x 92 x 84mm |
Net Weight | 3.4kg | 4.3kg | 5.3kg |
Mounting Suitable | Base and Side Mount | Base and Side Mount | Base or Side Mount |
Beam Types | Combo and Widr | Combo and Widr | Combo and Widr |
Warranty | 5 Years | 5 Years | 5 Years |
Harness Included | Yes | Yes | Yes |
SPECIFICATIONS | 355W NITRO LIGHT BAR | 405W NITRO LIGHT BAR | |
Wattage | 350 Watts | 400 Watts | |
Light Source | 70 x 5w LED's | 80 x 5w LED's | |
Light Output – Raw | 43,100 Lumens | 48,800 Lumens | |
Light Output – Effective | 31,580 Lumens | 37,750 Lumens | |
Voltage | 9-36V | 9-36V | |
Current Draw | 26A | 26A | |
Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C | |
Waterproof Rating | IP68 | IP68 | |
Connector Type Plug | 2 Pin std Deutsch | 2 Pin std Deutsch | |
Housing | 6063 T5 Aluminium | 6063 T5 Aluminium | |
Outer Lens Construction | Polycarbonate | Polycarbonate | |
Brackets | Sliding Base / Side Mounts | Sliding Base / Side Mounts | |
Colour Temperature | 4500K or 5700K | 4500K or 5700K | |
Lifespan | 50,000 Hours | 50,000 Hours | |
Dimensions | 1025 x 92 x 84mm | 1165 x 92 x 84mm | |
Net Weight | 6.9kg | 7.7kg | |
Mounting Suitable | Base or Side Mount | Base or Side Mount | |
Beam Types | Combo and Widr | Combo and Widr | |
Warranty | 5 Years | 5 Years | |
Harness Included | Yes | Yes |
COLOUR TEMPERATURE |
4500k, 5700k |
---|---|
HI/LO |
Yes, No |
RIM COLOUR |
Black, Chrome |
MOUNTING TYPE |
Base Mounts, Side Mounts |
SKU | DVM205LED |
Brand | Ultra Vision Lighting |
Shipping Weight | 1.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
