- NITRO MAXX 140W 9" High Power LED Driving Light Pair
- NEW Unrivalled performance
- NEW WIDR optic for powerful width outputs and distance
- NEW black brackets for a slick new look
- Lifetime warranty on all brackets
- UPDATED usable light – now 1600M
- Designed and Made in Australia for the toughest environments on earth
- Contrl® optic for optimum light pattern and unmatched penetrating beam
- Available with either 4500k or 5700k Colour Temperature
- 5 Year Warranty

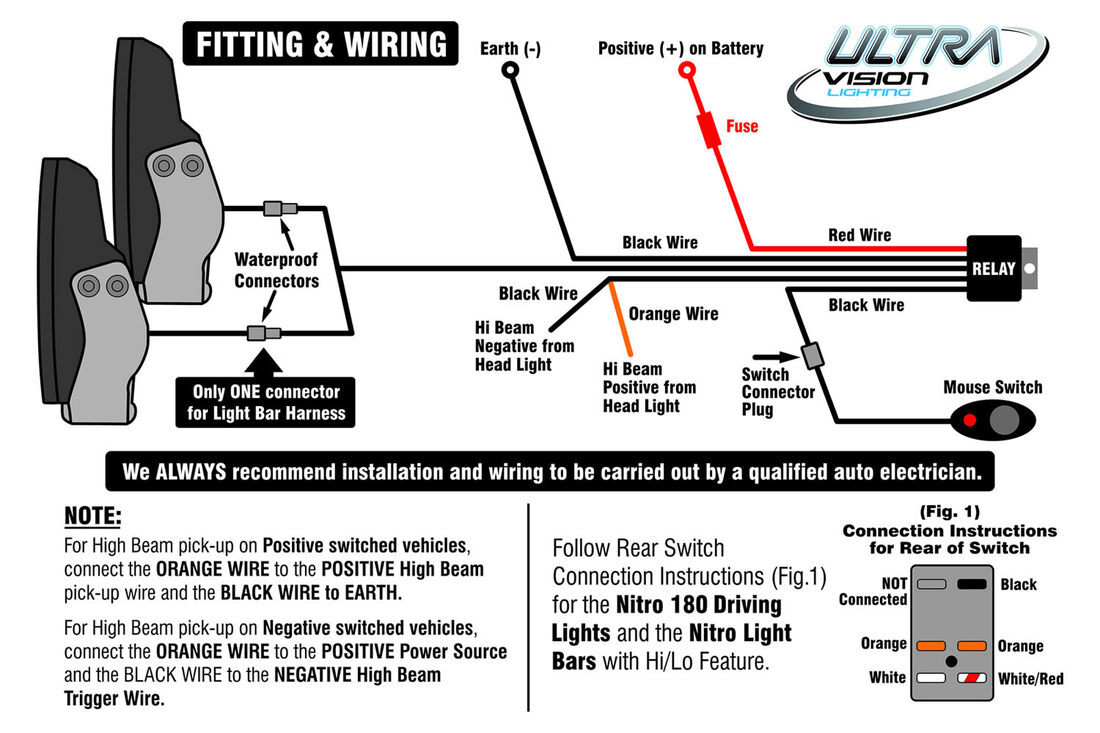

- A wiring harness and anti-theft nuts are included free of charge
- Includes clear protective lens covers
If you are unsure if the part suits your vehicle, please contact us with your VIN number before purchase to avoid ordering the wrong part. Blue "Notify Me" button means item is out of stock.

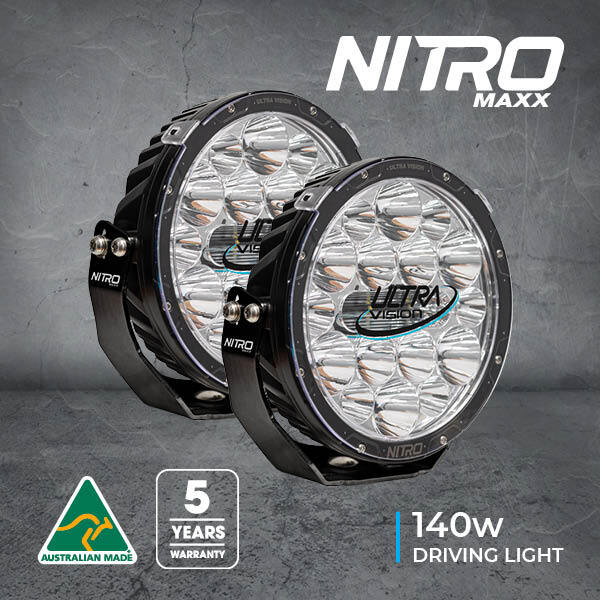

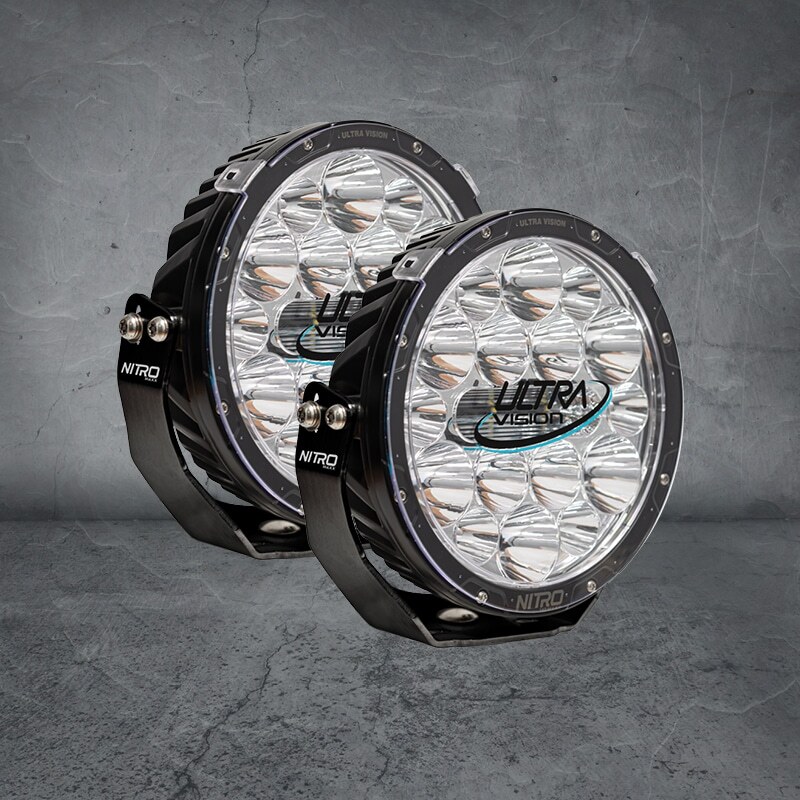

NITRO 140 MAXX 9" HIGH POWER LED DRIVING LIGHT PAIR - 5700K - BLACK RIM (INC HARNESS)
More infoMake 4 interest-free payments of $359.75 fortnightly and receive your order now.
More info »Calculate Shipping
Australia Post eParcel - $30.00
eParcel Post & Handling Fee
9-inch LED Driving Lights
Now with improved performance.
The NITRO 140 Maxx is the latest generation of high performance LED lighting. Utilising a sophisticated Contrl® optic the light usage is optimised to give width and distance from one reflector. The Widr® option further increases the width, but still giving more than 1 lux at 1.6kms. The new slim body design allows for fitment to the majority of vehicles and the reduced weight further improves options.
Utilising the proven stainless steel mounting bracket ensures years of trouble free life. Units are supplied complete with clear polycarbonate lens covers, wiring harness and anti-theft nuts.
By investing in Nitro 140 Maxx’s you can be confident you’ve made the right choice.

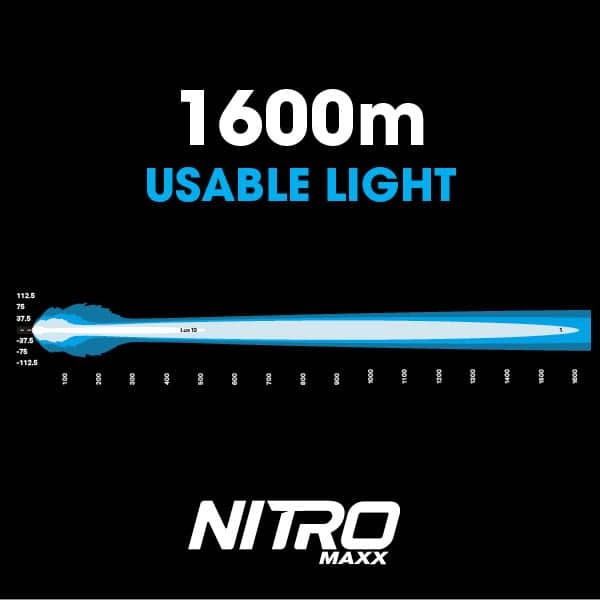

Driving Light Beam Patterns
(PVM2314LEDW)
Product Specificiation
| SPECIFICATION | NITRO 140 MAXX |
|---|---|
| Wattage | 140W (per lamp) |
| Light Source | 19 x High Power LED’s (per lamp) |
| Light Output – Raw | 28,328 Lumens (per pair) |
| Light Output – Effective | 22,520 Lumens (per pair) |
| Voltage | 9V-36V |
| Current Draw | 20A @ 13.5V (per pair) |
| Operating Temperature | -40°C to +80°C |
| Waterproof rating | IP68 |

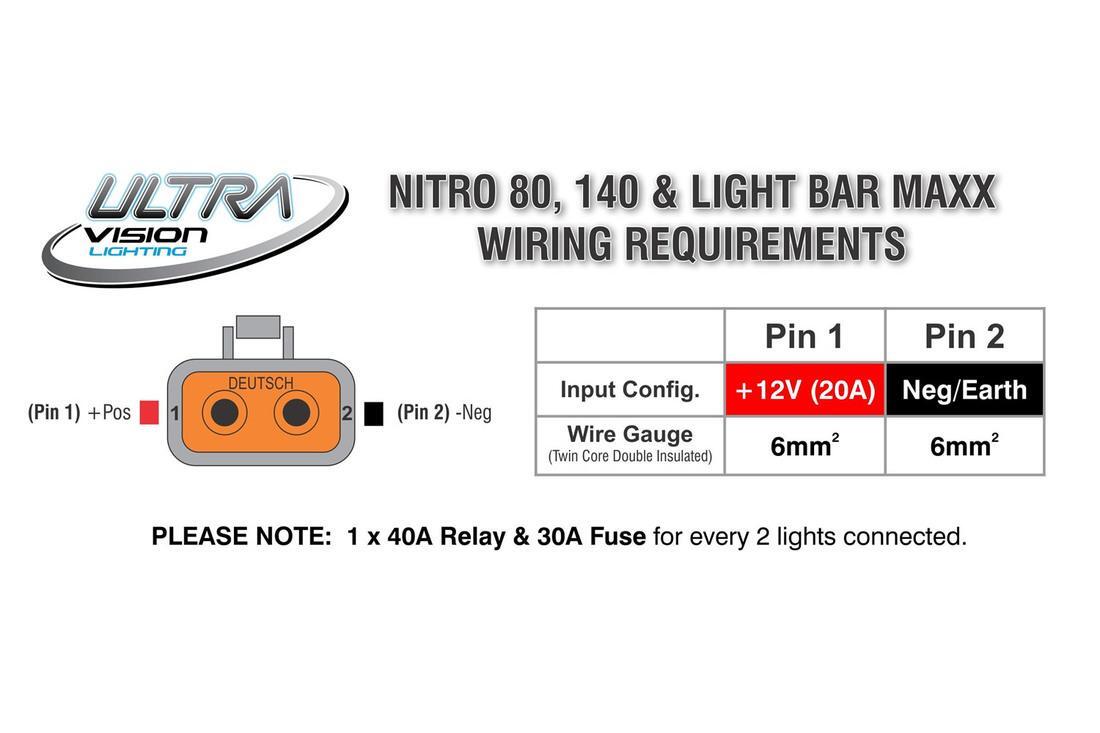

| Connector Type Plugs | 2 Pin standard Deutsch |
| Housing | Die-Cast Alloy |
| Outer Lens Construction | Polycarbonate |
| Brackets | 4mm Stainless Steel |
| Colour Temperature | 4500K or 5700K |
| Lifespan | 50,000 Hours |
| Diameter | 230mm |
| Net Weight | 2.95kg (per lamp) |
| Mounting Suitable | All types |
| Beam Type | Widr® |
| Warranty | 5 Years |
| Harness and anti-theft nuts included | Yes |
Product Numbers
| PRODUCT TYPE | PRODUCT NUMBER |
|---|---|
| Widr, 5700K, Black Rim | PVM2314LEDW/PR |
| Widr, 4500K, Black Rim | PVM2314LEDW4/PR |
| Widr, 5700K, Chrome Rim | PVM2314LEDW-C/PR |
| Widr, 4500K, Chrome Rim | PVM2314LEDW4-C/PR |
| SKU | PVM2314LEDW |
| Brand | Ultra Vision Lighting |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
